P6 indoor LED video screen is of a high resolution and affordable price. It is very cost effective . With strong fans installed in cabinet , good for heat dissipation, prolong the screen life. It has 27,777 pixels per square meter , definition is very high . It brings fresh and vivid viewing effect, which makes your advertising so attractive !
Regular cabinet size : 768x768mm or 960x960mm ( size can be customized)
With fans inside for heat dissipation , open backdoor very easy rear maintenance
Plywood Case Package
P6 indoor Led Video Screen for Fixed Installation
32 dots *32dots
1Red 1Green 1Blue
constant current driving 1/8 scan
LED lamp type
960*960mm ( size can be customized )
Brightness (White balance)
about 1100cd / sq.m.
Power consumption(one cabinet)
Max: 800 W / sq.m. Average: 250W / sq.m.
AC100V±10% or 220V ±10%; 50---60HZ
35Kg / sq.m (Iron cabinet)
Whole Display Flatness
within 100m by CAT5 cable or unlimited by wireless control
LED control system
LINSN / Nova-star / Colorlight
Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10
Rear Access / Front Access

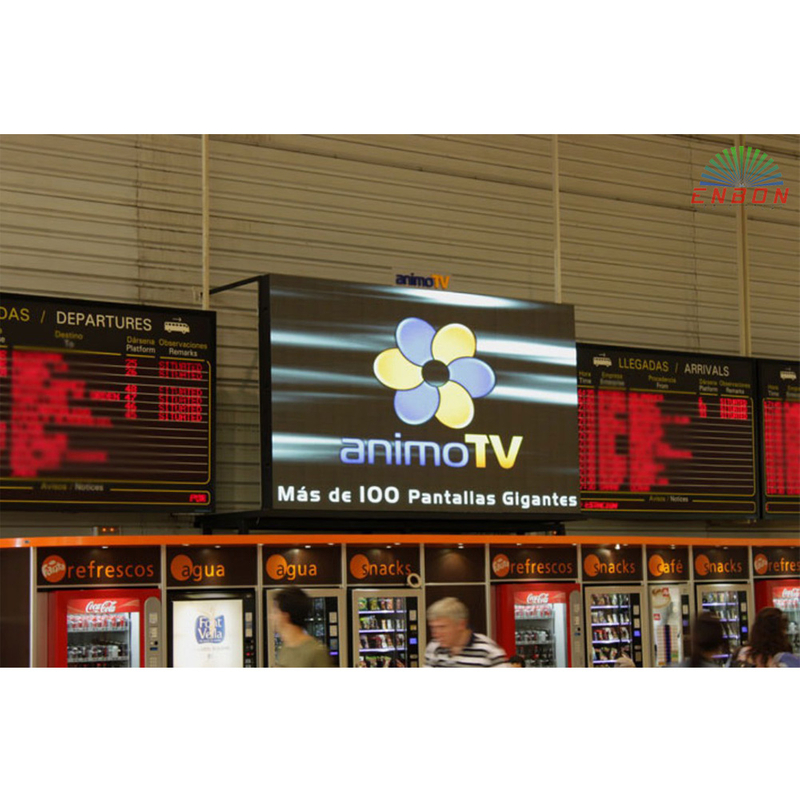

Widely used for stage backdrop , shopping mall , store , bank , cinema, school, church , airport, railway station , indoor stadium , etc indoor applications.
