P4
ENBON
852 8591 090
Availability: | |
---|---|
P4 indoor LED video screen is now becoming the most popular pixel pitch among all indoor LED screens for fixed installation. It is very cost effective . With strong fans installed in cabinet , good for heat dissipation, prolong the screen life. It has 62,500 pixels per square meter , definition is very high . It brings fresh and vivid viewing effect, which makes your advertising so attractive !
1. High resolution : 62,500 pixels / square meter , can show texts , videos very clearly
2. Standard steel closed cabinet , prevent distortion during shipping and installing .
3. Regular cabinet sizes 768*768mm / 1024*1024mm ( size can be customized )
4. SMD2121 Black Body Led with black masks , high contrast ratio , vivid display
5. Higher refresh rate: over 1,920Hz/s, no scan lines and dots when photographed
6. Excellent ventilated fan design for heat dissipation,improving the stability and lifespan
7. SMD 3 in 1 technology, ensure the super wide view angle and better evenness surface
8. Seetronic brand power and signal connectors, best connector in China Led market
9. Packed into plywood cases , save package and transportation cost
10. Easy to fix mounting , friendly maintenance by opening backdoor
P4 indoor LED video screen is now becoming the most popular pixel pitch among all indoor LED screens for fixed installation. It is very cost effective . With strong fans installed in cabinet , good for heat dissipation, prolong the screen life. It has 62,500 pixels per square meter , definition is very high . It brings fresh and vivid viewing effect, which makes your advertising so attractive !
1. High resolution : 62,500 pixels / square meter , can show texts , videos very clearly
2. Standard steel closed cabinet , prevent distortion during shipping and installing .
3. Regular cabinet sizes 768*768mm / 1024*1024mm ( size can be customized )
4. SMD2121 Black Body Led with black masks , high contrast ratio , vivid display
5. Higher refresh rate: over 1,920Hz/s, no scan lines and dots when photographed
6. Excellent ventilated fan design for heat dissipation,improving the stability and lifespan
7. SMD 3 in 1 technology, ensure the super wide view angle and better evenness surface
8. Seetronic brand power and signal connectors, best connector in China Led market
9. Packed into plywood cases , save package and transportation cost
10. Easy to fix mounting , friendly maintenance by opening backdoor
Regular cabinet size : 768x768mm , 1024mmx1024mm ( size can be customized)
With fans inside for heat dissipation , open backdoor very easy rear maintenance
Plywood Case Package
Regular cabinet size : 768x768mm , 1024mmx1024mm ( size can be customized)
With fans inside for heat dissipation , open backdoor very easy rear maintenance
Plywood Case Package
Model | P4 HD Led Video Screen for Fixed Installation |
Pixel pitch | 4mm |
Pixel density | 62,500 dots /sq.m |
Module size(W*H) | 256 mm(width)*128 mm(height) |
Module pixels(W*H) | 64 dots *32 dots |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving 1/16 scan |
LED lamp type | SMD2121 |
Cabinet size(W*H*D) | 768 mm * 768 mm / 1024*1024mm ( size can be customized ) |
Color scale | 65,536 degree |
View angle(H/V) | 140/120 degree |
Brightness (White balance) | about 1100cd / sq.m. |
Power consumption(one cabinet) | Max: 800 W / sq.m. Average: 250W / sq.m. |
Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
Net weight | 35Kg / sq.m (Iron cabinet) |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%—95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.5mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥1.920Hz /s |
Control distance | within 100m by CAT5 cable or unlimited by wireless control |
Power | 110V/220V±15% 47--63Hz |
LED control system | LINSN / Nova-star / Colorlight |
Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protection grade | IP30 |
Maintenance way | Rear Access / Front Access |
Model | P4 HD Led Video Screen for Fixed Installation |
Pixel pitch | 4mm |
Pixel density | 62,500 dots /sq.m |
Module size(W*H) | 256 mm(width)*128 mm(height) |
Module pixels(W*H) | 64 dots *32 dots |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving 1/16 scan |
LED lamp type | SMD2121 |
Cabinet size(W*H*D) | 768 mm * 768 mm / 1024*1024mm ( size can be customized ) |
Color scale | 65,536 degree |
View angle(H/V) | 140/120 degree |
Brightness (White balance) | about 1100cd / sq.m. |
Power consumption(one cabinet) | Max: 800 W / sq.m. Average: 250W / sq.m. |
Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
Net weight | 35Kg / sq.m (Iron cabinet) |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%—95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.5mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥1.920Hz /s |
Control distance | within 100m by CAT5 cable or unlimited by wireless control |
Power | 110V/220V±15% 47--63Hz |
LED control system | LINSN / Nova-star / Colorlight |
Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protection grade | IP30 |
Maintenance way | Rear Access / Front Access |
Widely used for stage backdrop , shopping mall , store , bank , cinema, school, church , airport, railway station , indoor stadium , etc indoor applications.

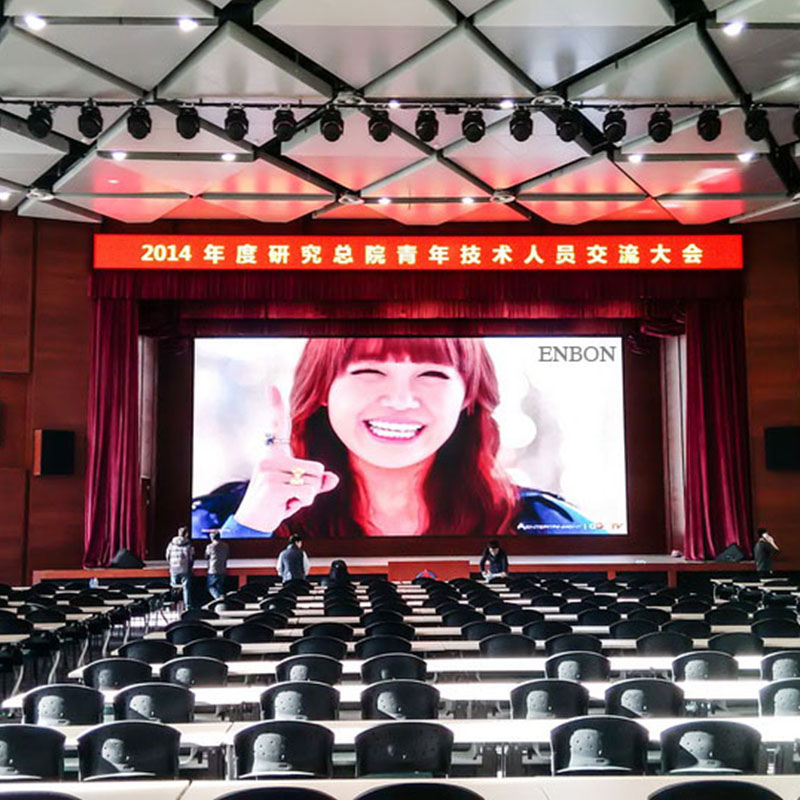

P4 Indoor 6 PCS 1024x1024mm Led Screen about 3 x 2m in Spain
Widely used for stage backdrop , shopping mall , store , bank , cinema, school, church , airport, railway station , indoor stadium , etc indoor applications.
P4 Indoor 6 PCS 1024x1024mm Led Screen about 3 x 2m in Spain
