P3 HD Video Wall Indoor LED Display Screen for Conference Room, Church ,hotel, Studio Or DJ Booth

  • P3

  • ENBON

  • 852 8591 090

Availability:

P3 indoor LED video screen is one of the smallest pixel pitch among all indoor LED screens for fixed installation. It is very cost effective . With strong fans installed in cabinet , good for heat dissipation, prolong the screen life. It has 11,111 pixels per square meter , definition is very high . It brings fresh and vivid viewing effect, which makes your advertising so attractive !


Features


1. High resolution :111,111 pixels / square meter , can show texts , videos very clearly

2. Standard steel closed cabinet , prevent distortion during shipping and installing .

3. Regular cabinet sizes 768*768mm / 960*960mm ( size can be customized )

4. SMD2121 Black Body Led with black masks , high contrast ratio , vivid display

5. Higher refresh rate: over 1,920Hz/s, no scan lines and dots when photographed

6. Excellent ventilated fan design for heat dissipation,improving the stability and lifespan

7. SMD 3 in 1 technology, ensure the super wide view angle and better evenness surface

8. Seetronic brand power and signal connectors, best connector in China Led market

9. Packed into plywood cases , save package and transportation cost

10. Easy to fix mounting , friendly maintenance by opening backdoor

Indoor fixed Led screen

Regular cabinet size : 768x768mm , 960x960mm ( size can be customized)


indoor fixed cabinet


inside

With fans inside for heat dissipation , open backdoor very easy rear maintenance




Led Display Cabinet







Plywood Case Package








Model

P3 HD Led Video Screen for Fixed Installation

Pixel pitch

3mm

Pixel density

111,111 dots /sq.m

Module size(W*H)

192 mm(width)*192 mm(height)

Module pixels(W*H)

64 dots *64 dots

Pixel configuration

1Red 1Green 1Blue

Drive mode

constant current driving 1/16 scan

LED lamp type

SMD2121

Cabinet size(W*H*D)

768 mm * 768 mm / 960*960mm  ( size can be customized )

Color scale

65,536 degree

View angle(H/V)

140/120 degree

Brightness (White balance)

about 1100cd / sq.m.

Power consumption(one cabinet)

Max: 800 W / sq.m.     Average: 250W / sq.m.

Operating Voltage

AC100V±10% or 220V ±10%;   50---60HZ

Net weight

35Kg / sq.m (Iron cabinet)

Operating temperature

-30°C----+60°C

Operating humidity

10%—95%RH

Life time

≥100,000hours

MTBF

5,000 hours

Whole Display Flatness

≤0.5mm Juncture

Frame frequency

25-60 Hz/s

Refresh rate

≥1.920Hz /s

Control distance

within 100m by CAT5 cable or unlimited by wireless control

Power

110V/220V±15%  47--63Hz

LED control system

LINSN /   Nova-star / Colorlight

Operating system

Windows 2000 / Windows Xp /   Windows 7 / windows 8 /8.1 / windows 10

Protection grade

IP30

Maintenance way

Rear Access / Front Access

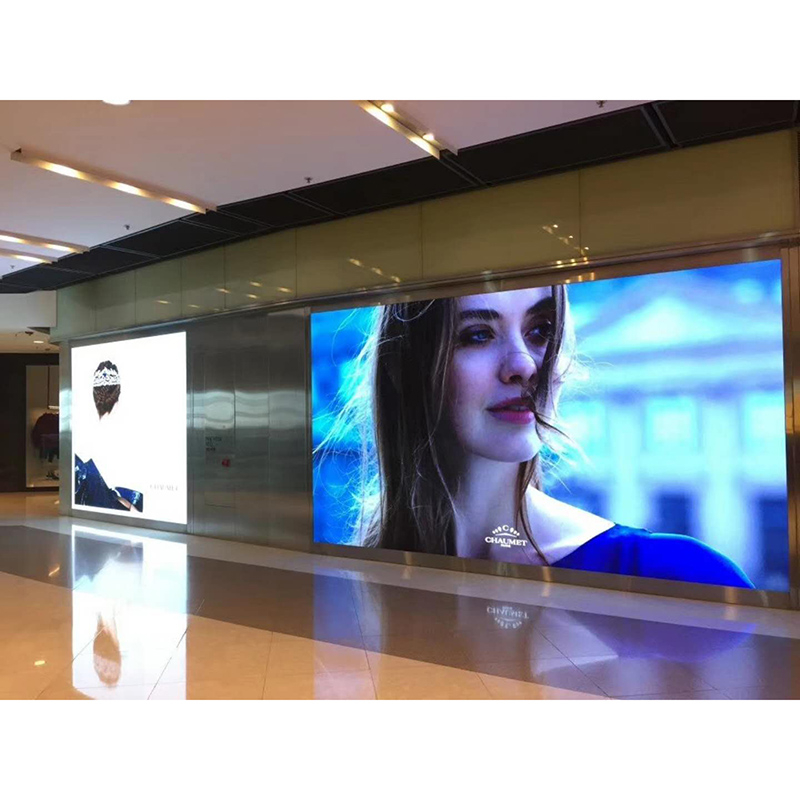

Widely used for stage backdrop , shopping mall , store , bank , cinema, school, church , airport, railway station , indoor stadium , etc indoor applications.


indoor fixedindoor fixed




P3 Led Screen

P3mm


P3 Led Screen

P4mm ( best selling )


P3 Led Screen

P5mm ( Hot sale)

P3 Led Screen

P6mm


P3 Led Screen

P7.62mm ( super cheap price)


P3 Led Screen

P10mm ( low price)
