P7.62
ENBON
852 8591 090
Availability: | |
---|---|
P7.62 indoor LED video screen is very economical model with high resolution and affordable price . With strong fans installed in cabinet , good for heat dissipation, prolong the screen life. It has 17,222 pixels per square meter , definition is very high . It brings fresh and vivid viewing effect, which makes your advertising so attractive !
1. High resolution : 17,222 pixels / square meter , can show texts , videos very clearly
2. Standard steel closed cabinet , prevent distortion during shipping and installing .
3. Regular cabinet sizes 976*976mm or 732*732mm ( size can be customized )
4. SMD3528 Black Body Led with black masks , high contrast ratio , vivid display
5. Higher refresh rate: over 1,920Hz/s, no scan lines and dots when photographed
6. Excellent ventilated fan design for heat dissipation,improving the stability and lifespan
7. SMD 3 in 1 technology, ensure the super wide view angle and better evenness surface
8. Seetronic brand power and signal connectors, best connector in China Led market
9. Packed into plywood cases , save package and transportation cost
10. Easy to fix mounting , friendly maintenance by opening backdoor
P7.62 indoor LED video screen is very economical model with high resolution and affordable price . With strong fans installed in cabinet , good for heat dissipation, prolong the screen life. It has 17,222 pixels per square meter , definition is very high . It brings fresh and vivid viewing effect, which makes your advertising so attractive !
1. High resolution : 17,222 pixels / square meter , can show texts , videos very clearly
2. Standard steel closed cabinet , prevent distortion during shipping and installing .
3. Regular cabinet sizes 976*976mm or 732*732mm ( size can be customized )
4. SMD3528 Black Body Led with black masks , high contrast ratio , vivid display
5. Higher refresh rate: over 1,920Hz/s, no scan lines and dots when photographed
6. Excellent ventilated fan design for heat dissipation,improving the stability and lifespan
7. SMD 3 in 1 technology, ensure the super wide view angle and better evenness surface
8. Seetronic brand power and signal connectors, best connector in China Led market
9. Packed into plywood cases , save package and transportation cost
10. Easy to fix mounting , friendly maintenance by opening backdoor
Regular cabinet size : 976x976mm or 732x732mm( size can be customized)
With fans inside for heat dissipation , open backdoor very easy rear maintenance
Plywood Case Package
Regular cabinet size : 976x976mm or 732x732mm( size can be customized)
With fans inside for heat dissipation , open backdoor very easy rear maintenance
Plywood Case Package
Model | P7.62 indoor Led Video Screen for Fixed Installation |
Pixel pitch | 7.62mm |
Pixel density | 17,222 dots /sq.m |
Module size(W*H) | 244 mm(width)*244mm(height) |
Module pixels(W*H) | 32 dots *32dots |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving 1/8 scan |
LED lamp type | SMD3528 |
Cabinet size(W*H*D) | 976*976mm or 732*732mm ( size can be customized ) |
Color scale | 65,536 degree |
View angle(H/V) | 140/120 degree |
Brightness (White balance) | about 1100cd / sq.m. |
Power consumption(one cabinet) | Max: 800 W / sq.m. Average: 250W / sq.m. |
Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
Net weight | 35Kg / sq.m (Iron cabinet) |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%—95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.5mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥1.920Hz /s |
Control distance | within 100m by CAT5 cable or unlimited by wireless control |
Power | 110V/220V±15% 47--63Hz |
LED control system | LINSN / Nova-star / Colorlight |
Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protection grade | IP30 |
Maintenance way | Rear Access / Front Access |
Model | P7.62 indoor Led Video Screen for Fixed Installation |
Pixel pitch | 7.62mm |
Pixel density | 17,222 dots /sq.m |
Module size(W*H) | 244 mm(width)*244mm(height) |
Module pixels(W*H) | 32 dots *32dots |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving 1/8 scan |
LED lamp type | SMD3528 |
Cabinet size(W*H*D) | 976*976mm or 732*732mm ( size can be customized ) |
Color scale | 65,536 degree |
View angle(H/V) | 140/120 degree |
Brightness (White balance) | about 1100cd / sq.m. |
Power consumption(one cabinet) | Max: 800 W / sq.m. Average: 250W / sq.m. |
Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
Net weight | 35Kg / sq.m (Iron cabinet) |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%—95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.5mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥1.920Hz /s |
Control distance | within 100m by CAT5 cable or unlimited by wireless control |
Power | 110V/220V±15% 47--63Hz |
LED control system | LINSN / Nova-star / Colorlight |
Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protection grade | IP30 |
Maintenance way | Rear Access / Front Access |

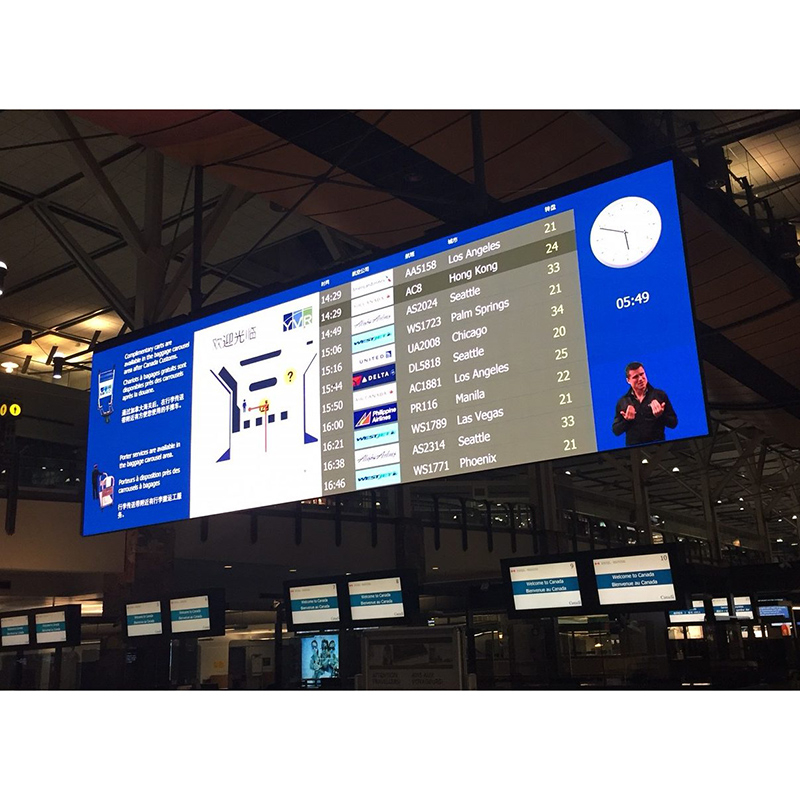

Widely used for stage backdrop , shopping mall , store , bank , cinema, school, church , airport, railway station , indoor stadium , etc indoor applications.
Widely used for stage backdrop , shopping mall , store , bank , cinema, school, church , airport, railway station , indoor stadium , etc indoor applications.
