P4
ENBON
852 8591 090
Availability: | |
---|---|
P4 indoor LED video display panel is now the most popular model for fixed installation. High definition but price is not high .It has high contrast rate by using SMD2121 black LED.
1. High resolution : 62,500 pixels / square meter , can show texts , videos very clearly
2. Standard steel closed cabinet , prevent distortion during shipping and installing .
3. Regular cabinet sizes 768*768mm / 1024*1024mm ( size can be customized )
4. SMD2121 Black Body Led with black masks , high contrast ratio , vivid display
5. Higher refresh rate: over 1,920Hz/s, no scan lines and dots when photographed
6. Excellent ventilated fan design for heat dissipation,improving the stability and lifespan
7. SMD 3 in 1 technology, ensure the super wide view angle and better evenness surface
8. Seetronic brand power and signal connectors, best connector in China Led market
9. Packed into plywood cases , save package and transportation cost
10. Easy to fix mounting , friendly maintenance by opening backdoor
P4 indoor LED video display panel is now the most popular model for fixed installation. High definition but price is not high .It has high contrast rate by using SMD2121 black LED.
1. High resolution : 62,500 pixels / square meter , can show texts , videos very clearly
2. Standard steel closed cabinet , prevent distortion during shipping and installing .
3. Regular cabinet sizes 768*768mm / 1024*1024mm ( size can be customized )
4. SMD2121 Black Body Led with black masks , high contrast ratio , vivid display
5. Higher refresh rate: over 1,920Hz/s, no scan lines and dots when photographed
6. Excellent ventilated fan design for heat dissipation,improving the stability and lifespan
7. SMD 3 in 1 technology, ensure the super wide view angle and better evenness surface
8. Seetronic brand power and signal connectors, best connector in China Led market
9. Packed into plywood cases , save package and transportation cost
10. Easy to fix mounting , friendly maintenance by opening backdoor

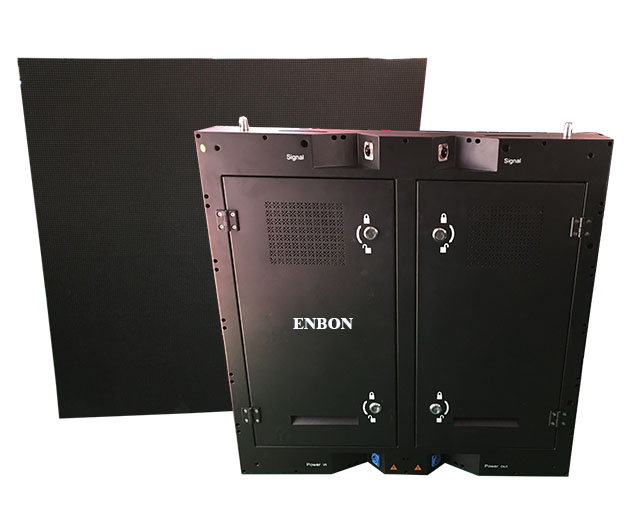

Regular cabinet size : 768x768mm , 1024mmx1024mm ( size can be customized)
With fans inside for heat dissipation , open backdoor very easy rear maintenance
Plywood Case Package
Regular cabinet size : 768x768mm , 1024mmx1024mm ( size can be customized)
With fans inside for heat dissipation , open backdoor very easy rear maintenance
Plywood Case Package
Model | P4 HD Led Video Screen for Fixed Installation |
Pixel pitch | 4mm |
Pixel density | 62,500 dots /sq.m |
Module size(W*H) | 256 mm(width)*128 mm(height) |
Module pixels(W*H) | 64 dots *32 dots |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving 1/16 scan |
LED lamp type | SMD2121 |
Cabinet size(W*H*D) | 768 mm * 768 mm / 1024*1024mm ( size can be customized ) |
Color scale | 65,536 degree |
View angle(H/V) | 140/120 degree |
Brightness (White balance) | about 1100cd / sq.m. |
Power consumption(one cabinet) | Max: 800 W / sq.m. Average: 250W / sq.m. |
Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
Net weight | 35Kg / sq.m (Iron cabinet) |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%—95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.5mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥1.920Hz /s |
Control distance | within 100m by CAT5 cable or unlimited by wireless control |
Power | 110V/220V±15% 47--63Hz |
LED control system | LINSN / Nova-star / Colorlight |
Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protection grade | IP30 |
Maintenance way | Rear Access / Front Access |
Model | P4 HD Led Video Screen for Fixed Installation |
Pixel pitch | 4mm |
Pixel density | 62,500 dots /sq.m |
Module size(W*H) | 256 mm(width)*128 mm(height) |
Module pixels(W*H) | 64 dots *32 dots |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving 1/16 scan |
LED lamp type | SMD2121 |
Cabinet size(W*H*D) | 768 mm * 768 mm / 1024*1024mm ( size can be customized ) |
Color scale | 65,536 degree |
View angle(H/V) | 140/120 degree |
Brightness (White balance) | about 1100cd / sq.m. |
Power consumption(one cabinet) | Max: 800 W / sq.m. Average: 250W / sq.m. |
Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
Net weight | 35Kg / sq.m (Iron cabinet) |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%—95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.5mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥1.920Hz /s |
Control distance | within 100m by CAT5 cable or unlimited by wireless control |
Power | 110V/220V±15% 47--63Hz |
LED control system | LINSN / Nova-star / Colorlight |
Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protection grade | IP30 |
Maintenance way | Rear Access / Front Access |
Widely used for stage backdrop , shopping mall , store , bank , cinema, school, church , airport, railway station , indoor stadium , etc indoor applications.

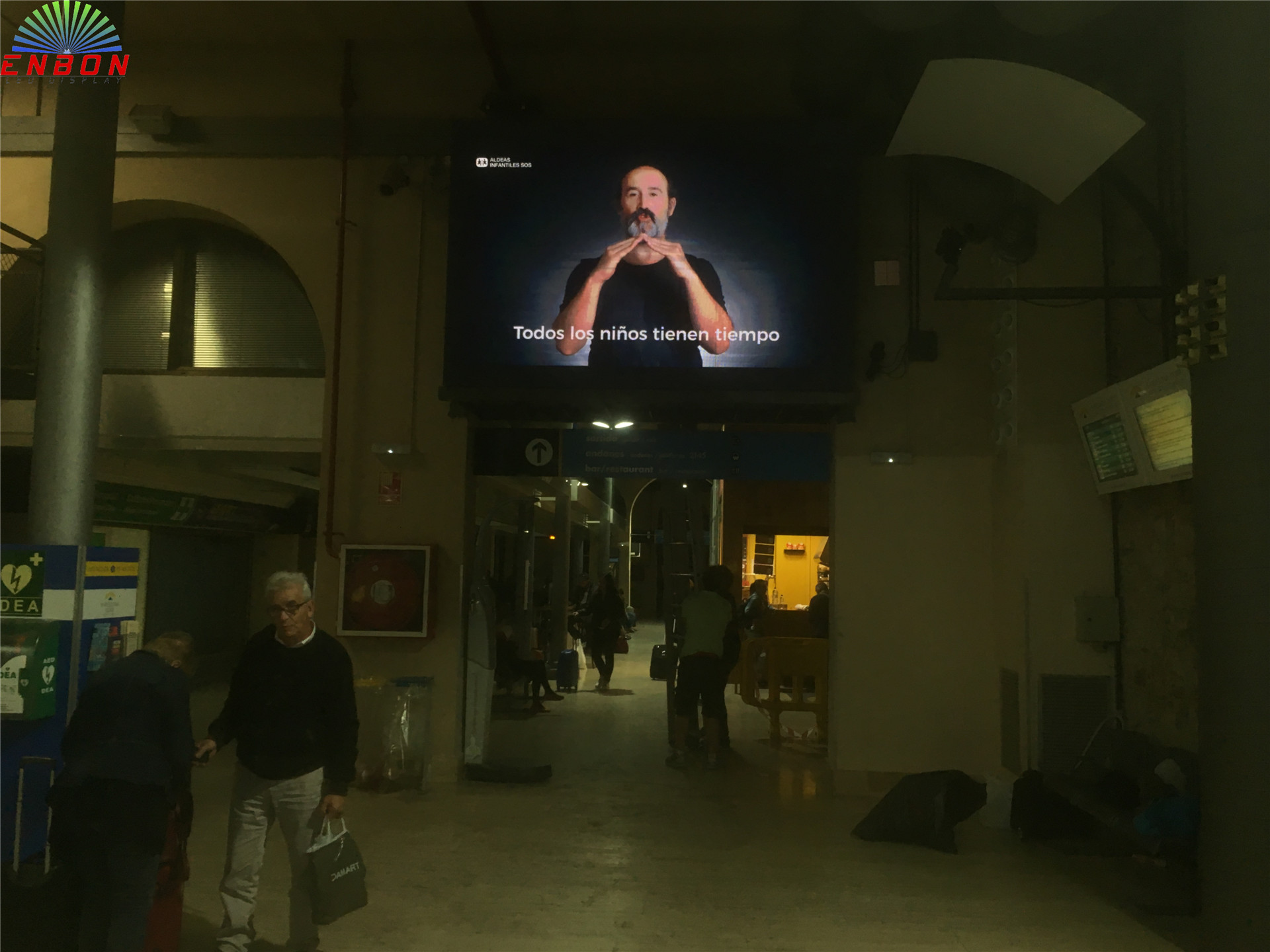

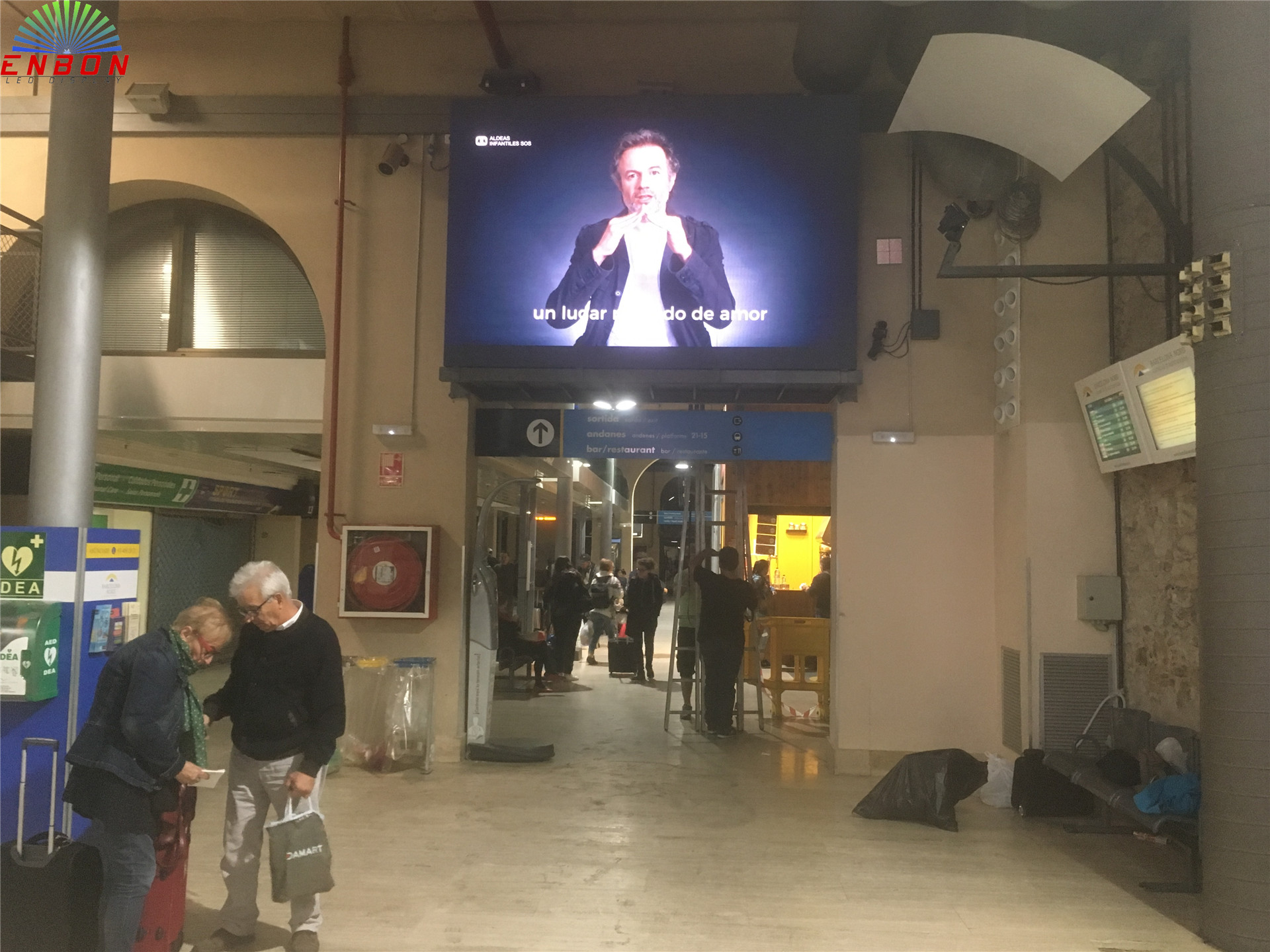

P4 Indoor 6 PCS 1024x1024mm Led Screen about 3 x 2m in Spain
Widely used for stage backdrop , shopping mall , store , bank , cinema, school, church , airport, railway station , indoor stadium , etc indoor applications.
P4 Indoor 6 PCS 1024x1024mm Led Screen about 3 x 2m in Spain
