P4.81 Front Access 500x1000mm Led Panel with Magnetic Module Display Tool

  • P4.81
  • ENBON
  • 852 8591 090
Quantity:

P4.81mm front access LED display is very popular for large size because of its relative low price . It has 43,264 pixels per square meter , definition is very high . It is good for short and long viewing distance.



Features

1. Die Casting 500mmW*1000mmH*95mmD , light weight 14 KG per panel

2. Easy to calculate Led video wall size , display area exactly 3*2m, 4.5*3m, 6*4m etc

3. SMD2121 Black Body Led with black masks , high contrast ratio , vivid display

4. High refresh, High gray scale, Ghost-canceling, Gorgeous picture showing

5. Die-cast aluminum cabinet , high precision , good flatness, seamless splicing

6. Special frame structure make excellent heat dissipation, quiet operation without fans

7. Large viewing angle and smooth displaying , excellent visual effect from every angle

8. Super durable fast locks design , easy to assemble and dismantling at short time

9. Seetronic brand power and signal connectors, best connector in China Led market

10. Packed into flight cases ( 6 panels in 1) , easy to transport , protect panels well

11. Front maintenance save much installation space , can be mounted on wall tightly


Available Pixel Pith


P3.91mm , P4.81mm

500x1000mm front access

Cabinet front


500x1000mm

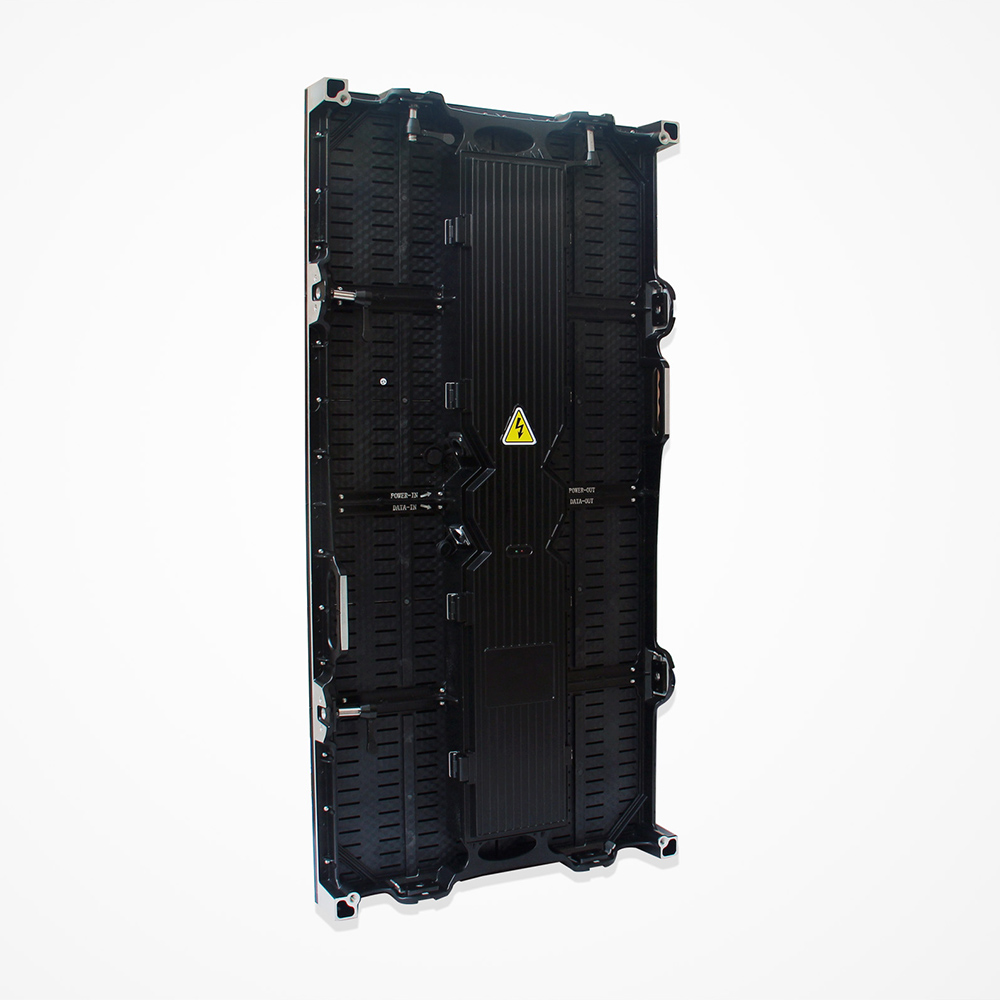

Cabinet back


tool

User friendly

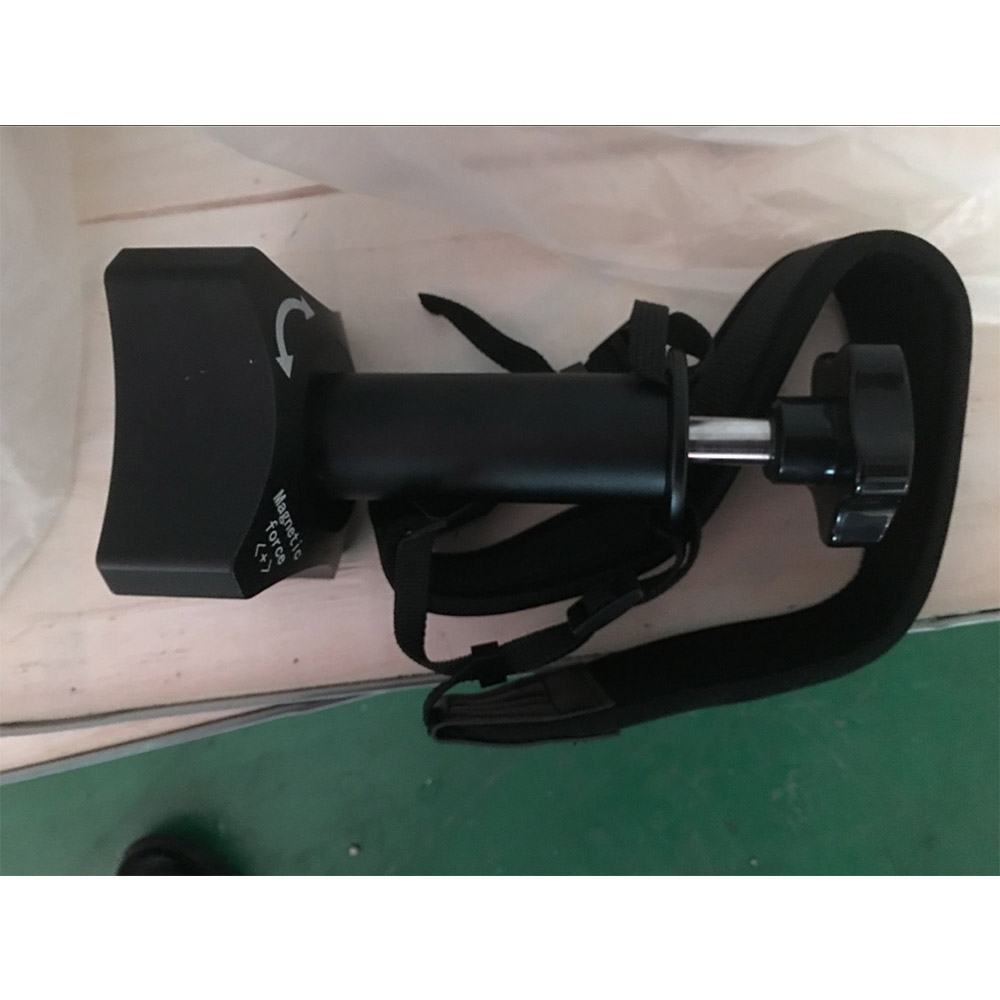

500x1000mm front access-tool

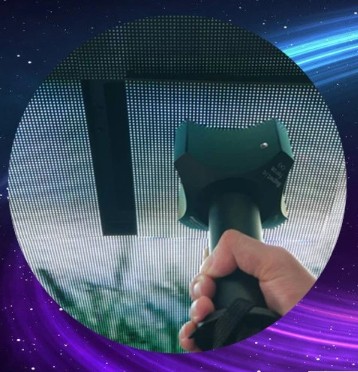

Magnetic Tool

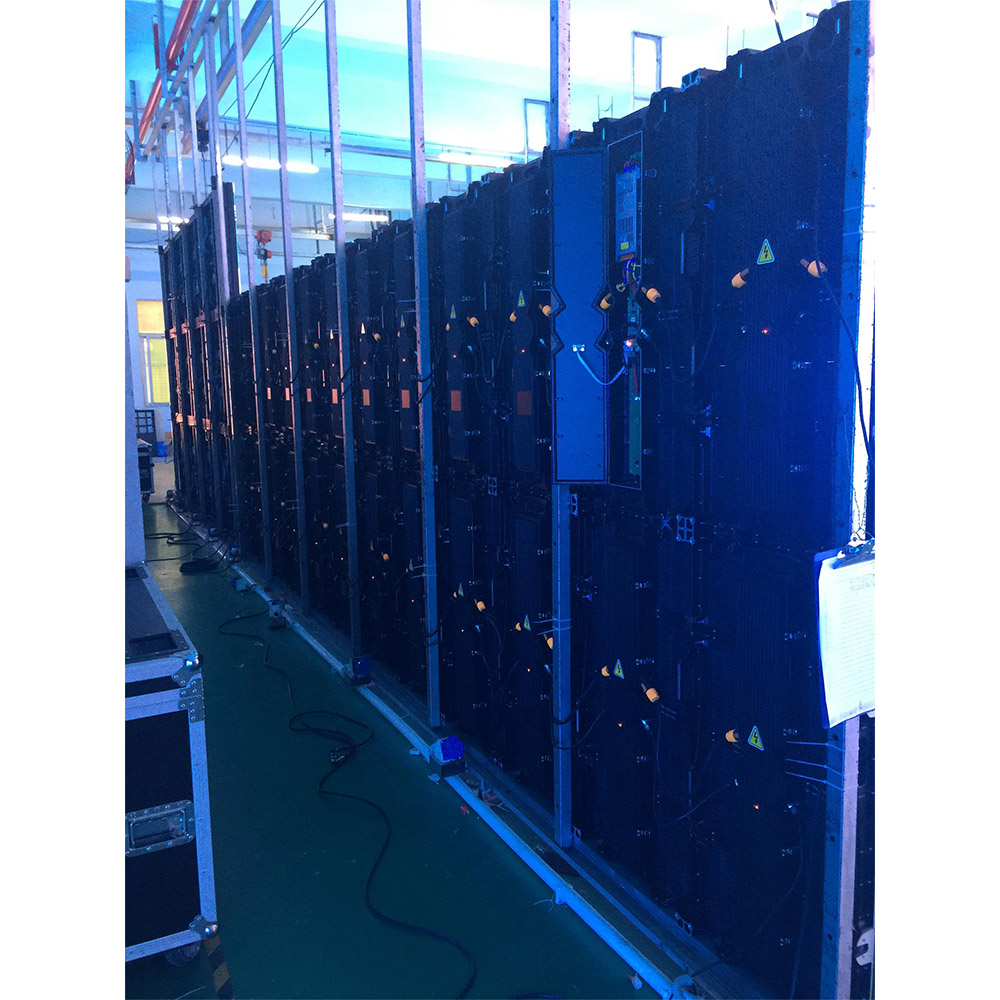

500x1000mm front access-7








Model

P4.81 Indoor Full Color LED Screen for Wall Installation

Pixel pitch

4.81mm

Pixel density

43,264 dots / sq.m

Module size(W*H)

250 mm (width) * 250 mm (height)

Module pixels(W*H)

52 dots * 52 dots

Pixel configuration

1Red 1Green 1Blue

Drive mode

constant current driving 1/13 scan

LED lamp type

SMD2121

Cabinet size(W*H*D)

500mm (width) * 500mm (height) * 95mm (depth)

Net weight

14 Kg / cabinet

Cabinet resolution

104 dots (width ) * 208 dots (height )

Color scale

65,536 degree

View angle(H/V)

140/120 degree

Brightness (White balance)

about 1100 cd / sq.m

Power consumption

Max: 300W / cabinet , Average: 150 W / cabinet

Operating Voltage

90-264VAC    47--63Hz

Operating temperature

-30°C----+60°C

Operating humidity

10%—95%RH

Life time

≥100,000hours

MTBF

5,000 hours

Whole Display Flatness

≤0.2mm Juncture

Frame frequency

25-60 Hz/s

Refresh rate

≥3,840Hz /s

Control distance

100m

LED control system

LINSN /   Nova-star / Colorlight

Operating system

Windows 2000 / Windows Xp / Windows 7 / windows 8   /8.1 / windows 10

Protection grade

IP30

Maintenance way

Front Access




Widely used for stage, musical concert, church , exhibition show , banquet, wedding, conference room, hotel , school, shopping mall , multimedia presentation, TV station , studio , public advertising etc.

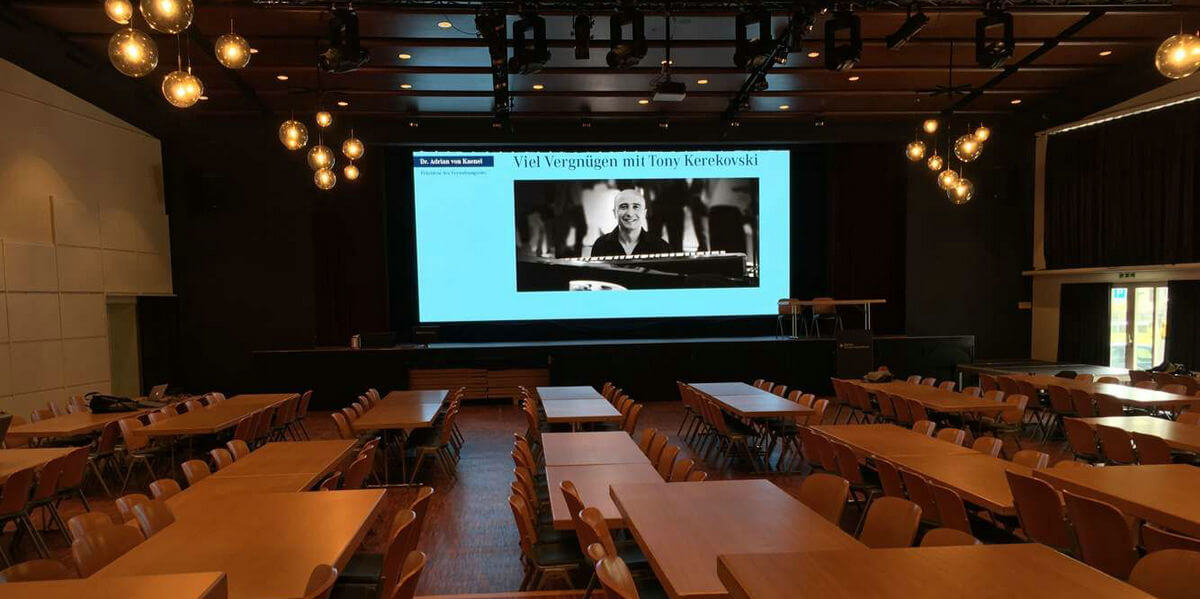

P4.81-SMD-Indoor-LED-Display-for-Corportate-Conference-Room
