P6.25 Outdoor Low Price 500x500mm Led Panel Rental Display for Mobile

  • P6.25
  • ENBON
  • 852 8591 090
Quantity:

P6.25 mm outdoor led display is very popular for rental use , relative low cost but get good resolution. Brightness over 4000 nits, can show good image even there is strong sunlight. IP65 Waterproof panel can be used for both outdoor and indoor events , very wide applications !


Features


1. Ultra-thin 78 mm thickness and super-light weight only 8 KG per 500*500mm panel

2. Easy to calculate Led video wall size ,Screen area exactly 3.5*2.5m, 4*3m, 6*4m etc

3. Nationstar SMD3535 Led , the best SMD brand in China, highly waterproof

4. High refresh, High grayscale, Ghost-canceling, Gorgeous picture showing

5. Die-cast aluminum cabinet (80mm thickness), high precision , good flatness, seamless splicing

6. Special frame structure make excellent heat dissipation, quiet operation without fans

7. Large viewing angle and smooth displaying , excellent visual effect from every angle

8. Super durable fast locks design , easy to assemble and dismantling at short time

9. Seetronic brand power and signal connectors, best connector in China Led market

10. Packed into flight cases , easy to go anywhere

11. Portable use at different locations, easily suspended on truss with hanging bars

IP65 Outdoor Waterproof Protection  , Backdoor Color is customized

ip65 500x500mm

OUTDOOR 500x500mm




500x500mm



4 Panels for 1 Square Meter


No flat cables design , very stable


"U" shape cover behind air vent


Better waterproof










      Fast assembly




Fast locks design


Easy to assemble & dismantling




Enbon fast locks

Model

P6.25 Outdoor Waterproof Led Display Panel

Pixel pitch

6.25 mm

Pixel density

25,600 dots /sq.m

Module size(W*H)

250 mm(Width)*250 mm(height)

Module pixels(W*H)

40 dots *40 dots

Pixel configuration

1Red 1Green 1Blue

Drive mode

constant current driving ; 1/10  scan

LED lamp type

Waterproof SMD2727

Cabinet size(W*H*D)

500mm * 500mm * 80mm

Cabinet resolution

80 dots * 80 dots

Net weight

8 Kg / cabinet

Color scale

65,536 degree

View angle(H/V)

140/120 degree

Brightness (White balance)

over 4,000cd/sq.m.

Power consumption

Max:1000W / sq.m , Average: 450W / sq.m

Inputting Voltage

90-264 VAC;   47---63HZ

Operating temperature

-30°C----+60°C

Operating humidity

10%—95%RH

Life time

≥100,000hours

MTBF

5,000 hours

Whole Display Flatness

≤0.2mm Juncture

Frame frequency

25-60 Hz/s

Refresh rate

≥3,840Hz /s

Control distance

100m

LED control system

LINSN /   Nova-star / Colorlight

Operating system

Windows 2000 / Windows Xp /   Windows 7 / windows 8 /8.1 / windows 10

Protection grade

IP65

Maintenance way

Rear Access


Widely used for outdoor and indoor rental stage, musical concert, church , exhibition show , banquet, wedding, conference room, hotel , school, shopping mall , multimedia presentation, TV station , studio , public advertising etc.

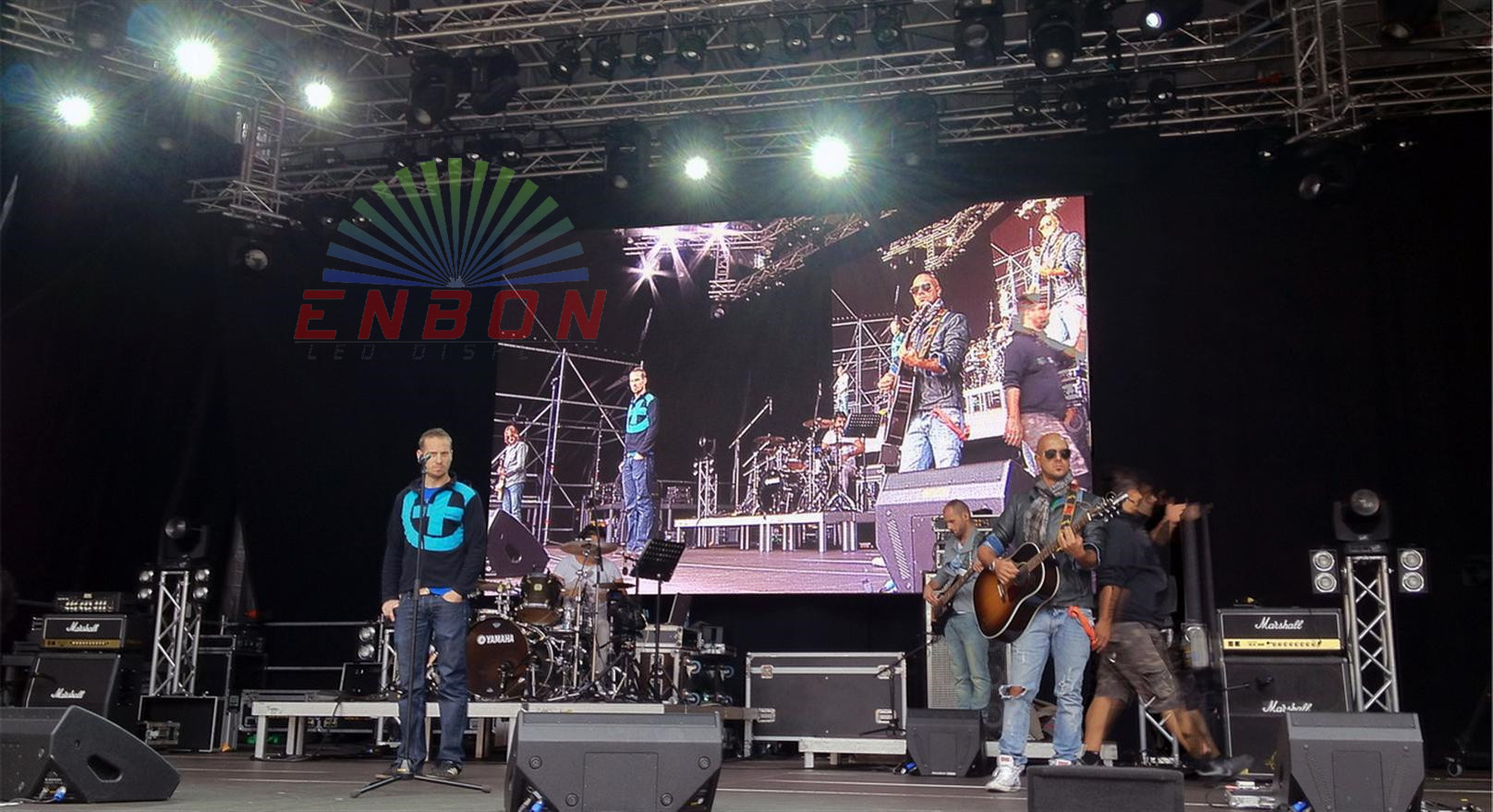

P6.25 music band show led display

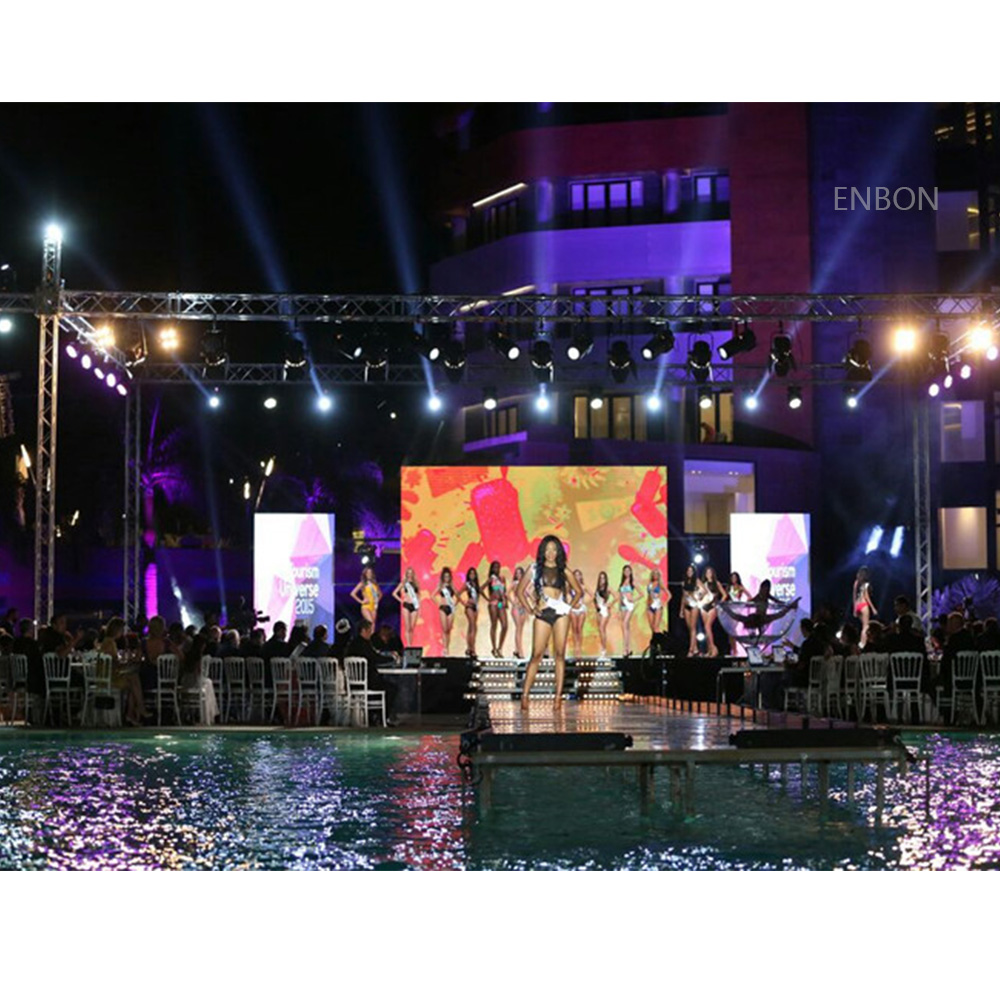

P6.25 500X500 OUTDOOR B

P3.91 Outdoor Led Panel

P3.91


P4.81 Outdoor Led

P4.81

P5.95 Led Display

P5.95


P6.25 outdoor led screen

P6.25
