P6.25
ENBON
852 8591 090
Availability: | |
---|---|
This is ENBON Best-selling series LED Screen. It is die-casting aluminum cabinet ,ultra-thin and super-light design . Only 7.5 KG for 500*500mm panel. Packed by road cases ,very portable ,ready to go anywhere at any time for all your events indoors. P6.25 is the lowest cost pixel pitch option in this series, fit for long viewing distance and large wall , relative cheap cost solution.
1. Ultra thin Led Panel 500mmW*500mmH*80mmD , light weight 7.5 KG per panel
2. Easy to calculate Led video wall size , display area exactly 3.5*2m, 4*2.5m, 6*3.5m etc
3. SMD3528 White Body Led with black masks , high contrast ratio , vivid display
4. High refresh, High gray scale, Ghost-canceling, Gorgeous picture showing
5. Die-cast aluminum cabinet , high precision , good flatness, seamless splicing
6. Special frame structure make excellent heat dissipation, quiet operation without fans
7. Large viewing angle and smooth displaying , excellent visual effect from every angle
8. Super durable fast locks design , easy to assemble and dismantling at short time
9. Seetronic brand power and signal connectors, best connector in China Led market
10. Packed into flight cases ( max 12 panels in 1) , easy to transport , protect panels well
11. Can be portable use or fixed mounting, easily suspended on truss with hanging bars
This is ENBON Best-selling series LED Screen. It is die-casting aluminum cabinet ,ultra-thin and super-light design . Only 7.5 KG for 500*500mm panel. Packed by road cases ,very portable ,ready to go anywhere at any time for all your events indoors. P6.25 is the lowest cost pixel pitch option in this series, fit for long viewing distance and large wall , relative cheap cost solution.
1. Ultra thin Led Panel 500mmW*500mmH*80mmD , light weight 7.5 KG per panel
2. Easy to calculate Led video wall size , display area exactly 3.5*2m, 4*2.5m, 6*3.5m etc
3. SMD3528 White Body Led with black masks , high contrast ratio , vivid display
4. High refresh, High gray scale, Ghost-canceling, Gorgeous picture showing
5. Die-cast aluminum cabinet , high precision , good flatness, seamless splicing
6. Special frame structure make excellent heat dissipation, quiet operation without fans
7. Large viewing angle and smooth displaying , excellent visual effect from every angle
8. Super durable fast locks design , easy to assemble and dismantling at short time
9. Seetronic brand power and signal connectors, best connector in China Led market
10. Packed into flight cases ( max 12 panels in 1) , easy to transport , protect panels well
11. Can be portable use or fixed mounting, easily suspended on truss with hanging bars
Friendly Maintenance
Handle design , easy for rear maintenance
4 Panels for 1 Square meter
Seetronic brand connectors
Friendly Maintenance
Handle design , easy for rear maintenance
4 Panels for 1 Square meter
Seetronic brand connectors
Model | P6.25 Indoor Full Color LED Video Wall |
Pixel pitch | 6.25mm |
Pixel density | 25,600 dots / sq.m |
Module size(W*H) | 250 mm (width) * 250 mm (height) |
Module pixels(W*H) | 40 dots * 40 dots |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving 1/10 scan |
LED lamp type | SMD3528 White |
Cabinet size(W*H*D) | 500mm (width) * 500mm (height) * 80mm (depth) |
Net weight | 7.5 Kg / cabinet |
Cabinet resolution | 80 dots (width ) * 80 dots (height ) |
Color scale | 65,536 degree |
View angle(H/V) | 140/120 degree |
Brightness (White balance) | about 1,300 cd / sq.m |
Power consumption | Max:150W / cabinet , Average: 75 W / cabinet |
Operating Voltage | 90-264VAC 47--63Hz |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%—95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.2mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥3,840Hz /s |
Control distance | 100m |
LED control system | LINSN / Nova-star / Colorlight |
Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protection grade | IP30 |
Maintenance way | Rear Access / Front Access |
Model | P6.25 Indoor Full Color LED Video Wall |
Pixel pitch | 6.25mm |
Pixel density | 25,600 dots / sq.m |
Module size(W*H) | 250 mm (width) * 250 mm (height) |
Module pixels(W*H) | 40 dots * 40 dots |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving 1/10 scan |
LED lamp type | SMD3528 White |
Cabinet size(W*H*D) | 500mm (width) * 500mm (height) * 80mm (depth) |
Net weight | 7.5 Kg / cabinet |
Cabinet resolution | 80 dots (width ) * 80 dots (height ) |
Color scale | 65,536 degree |
View angle(H/V) | 140/120 degree |
Brightness (White balance) | about 1,300 cd / sq.m |
Power consumption | Max:150W / cabinet , Average: 75 W / cabinet |
Operating Voltage | 90-264VAC 47--63Hz |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%—95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.2mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥3,840Hz /s |
Control distance | 100m |
LED control system | LINSN / Nova-star / Colorlight |
Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protection grade | IP30 |
Maintenance way | Rear Access / Front Access |

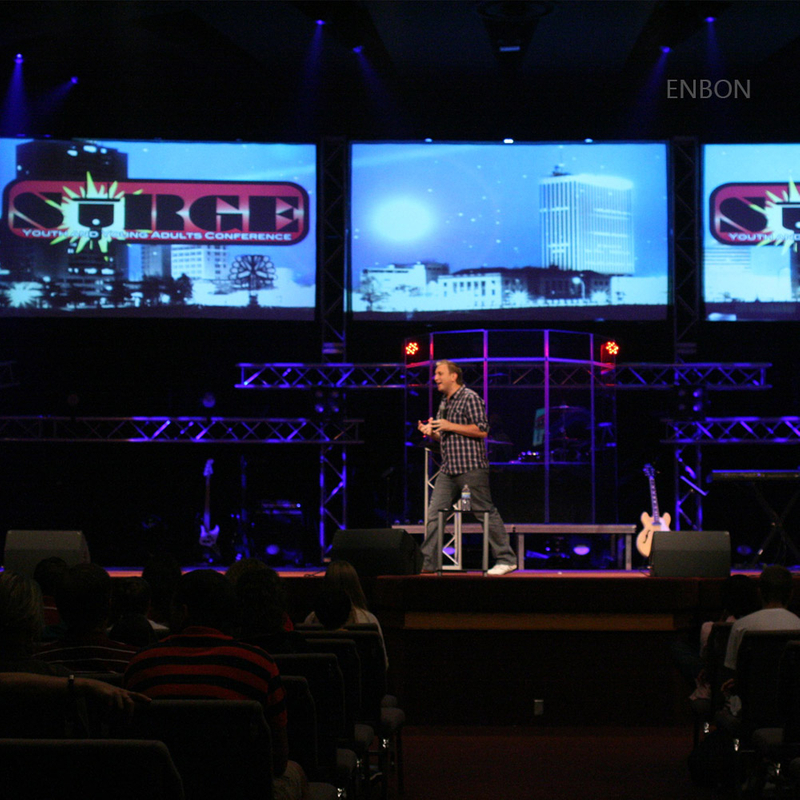

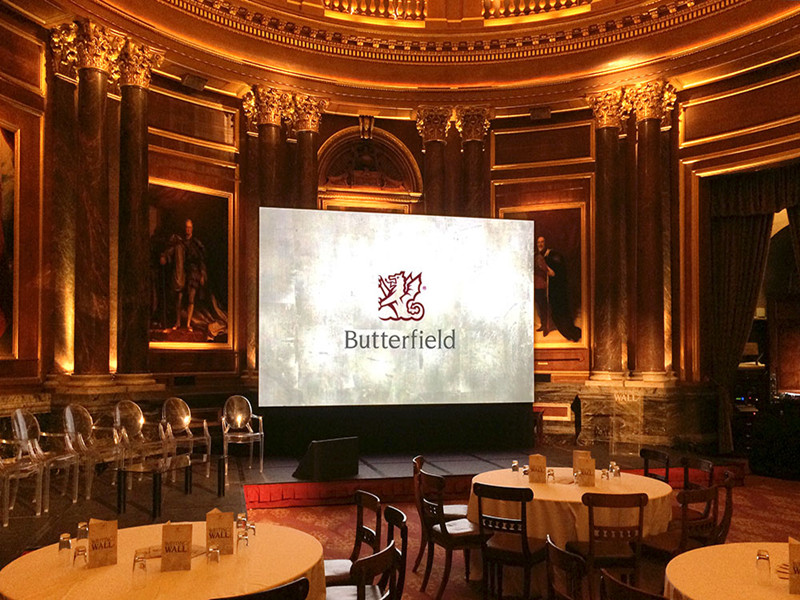

Widely used for rental stage, musical concert, church , exhibition show , banquet, wedding, conference room, hotel , school, shopping mall , multimedia presentation, TV station , studio , public advertising etc.
Widely used for rental stage, musical concert, church , exhibition show , banquet, wedding, conference room, hotel , school, shopping mall , multimedia presentation, TV station , studio , public advertising etc.
