P5.95 High Brightness Outdoor Movable Led Video Screen for Events ( 500*500mm, 500*1000mm)

  • P5.95

  • ENBON

  • 852 8591 090

Availability:

P5.95mm outdoor led display is a cost effective solution for large size rental Led display. Good resolution of 28,224 pixels/Sq.m. Very high brightness over 5000 Nits, it can show good image even there is strong sunlight.  IP65 Waterproof panel can be used for both outdoor and indoor events , very wide applications !


There are two panel sizes for your choice : 500*500mm or 500*1000mm (cheaper).


Features


1. 500*500mm ( 8.5 KG / panel ) ; 500mm*1000mm (14,5 KG / panel )

2. Easy to calculate Led Display size , display area exactly 3.5*2.5m, 4*3m, 6*4.5m etc

3. Nationstar SMD2727 Led , the best SMD brand in China, highly waterproof

4. High refresh, High gray scale, Ghost-canceling, Gorgeous picture showing

5. Die-cast aluminum cabinet (80mm thickness), high precision , good flatness, seamless splicing

6. Special frame structure make excellent heat dissipation, quiet operation without fans

7. Large viewing angle and smooth displaying , excellent visual effect from every angle

8. Super durable fast locks design , easy to assemble and dismantling at short time

9. Seetronic brand power and signal connectors, best connector in China Led market

10. Packed into flight cases , portable use at different locations, easily suspended on truss with hanging bars

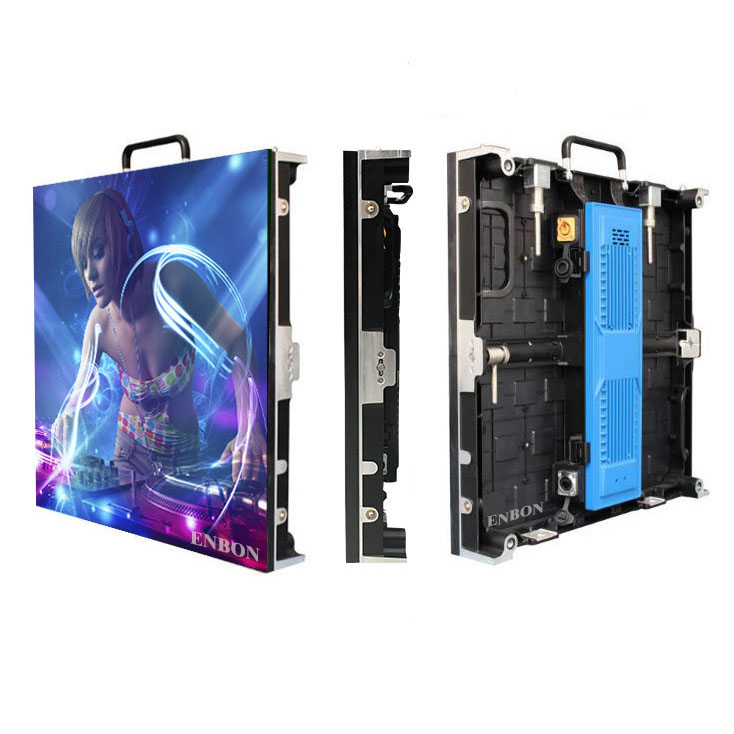

P5.95



500mm*500mm*80mmD


Super light weight 8.5 KG / panel


1 Power Supply & 1 Receiving Card inside


4 Panels for 1 Square Meter , easy to transport


IP65 Wateproof for both outdoor and indoor






500x1000mm



500mmW*1000mmH*80mmD


Cheaper Option 14.5 KG / panel


2 Power Supply & 1 Receiving Card inside


2 Panels for 1 Square Meter , quick installation


IP65 Wateproof for both outdoor and indoor







Fast assembly




Locks Details



Enbon fast locks


Model

P5.95 Led Display Panel for both Outdoor and Indoor Use

Pixel pitch

5.95mm

Pixel density

28,224 dots /sq.m

Module size(W*H)

250 mm(Width)*250 mm(height)

Module pixels(W*H)

42 dots *42 dots

Pixel configuration

1Red 1Green 1Blue

Drive mode

constant current driving 1/13 scan

LED lamp type

Waterproof SMD2727

Cabinet size(W*H*D)

500mm * 500mm * 80mm

500mm * 1000mm * 80mm

Cabinet resolution

104 dots * 104 dots

104 dots * 208 dots

Net weight

8.5Kg / cabinet

14.5Kg / cabinet

Color scale

65,536 degree

View angle(H/V)

140/120 degree

Brightness (White balance)

over 5,000cd/sq.m.

Power consumption

Max:1000 W / sq.m , Average: 450W / sq.m

Inputting Voltage

90-264 VAC;   47---63HZ

Operating temperature

-30°C----+60°C

Operating humidity

10%—95%RH

Life time

≥100,000hours

MTBF

5,000 hours

Whole Display Flatness

≤0.2mm Juncture

Frame frequency

25-60 Hz/s

Refresh rate

≥3,840Hz /s

Control distance

100m

LED control system

LINSN /   Nova-star / Colorlight

Operating system

Windows 2000 / Windows Xp /   Windows 7 / windows 8 /8.1 / windows 10

Protection grade

IP65

Maintenance way

Rear Access

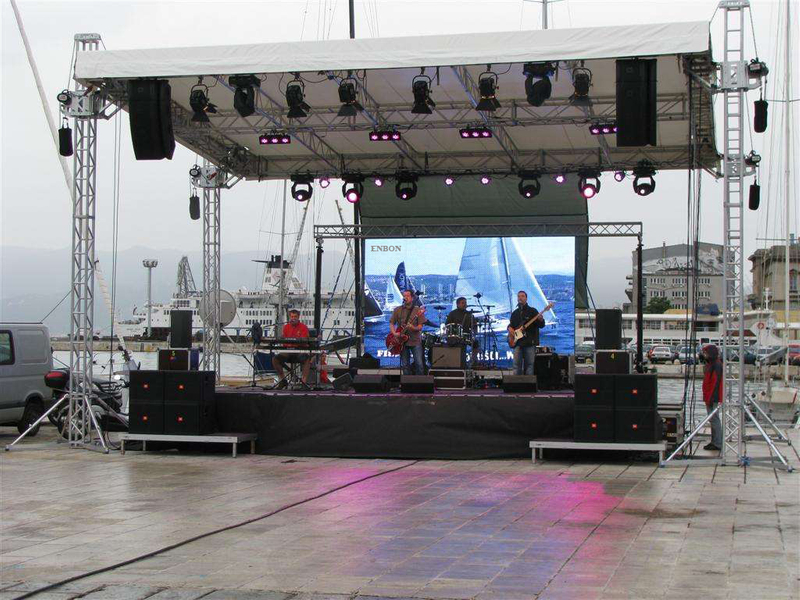

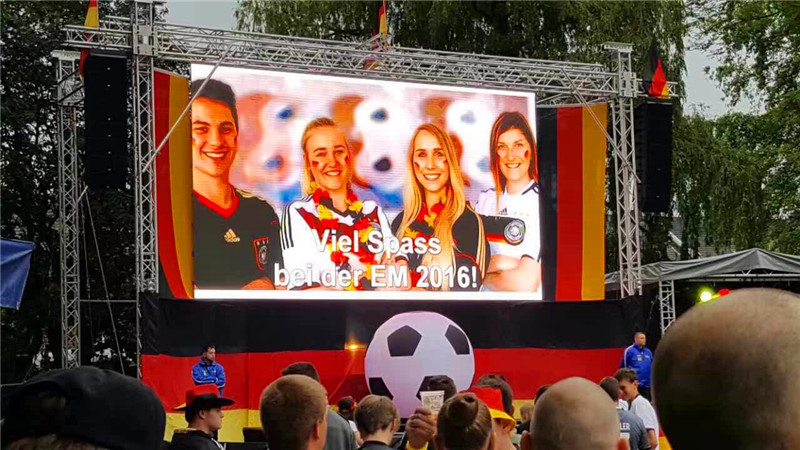

Widely used for outdoor and indoor stages, musical concerts, churches , exhibition shows, banquet, wedding, conference room, hotel , school, shopping mall , multimedia presentation, TV station , studio , public advertising etc.
