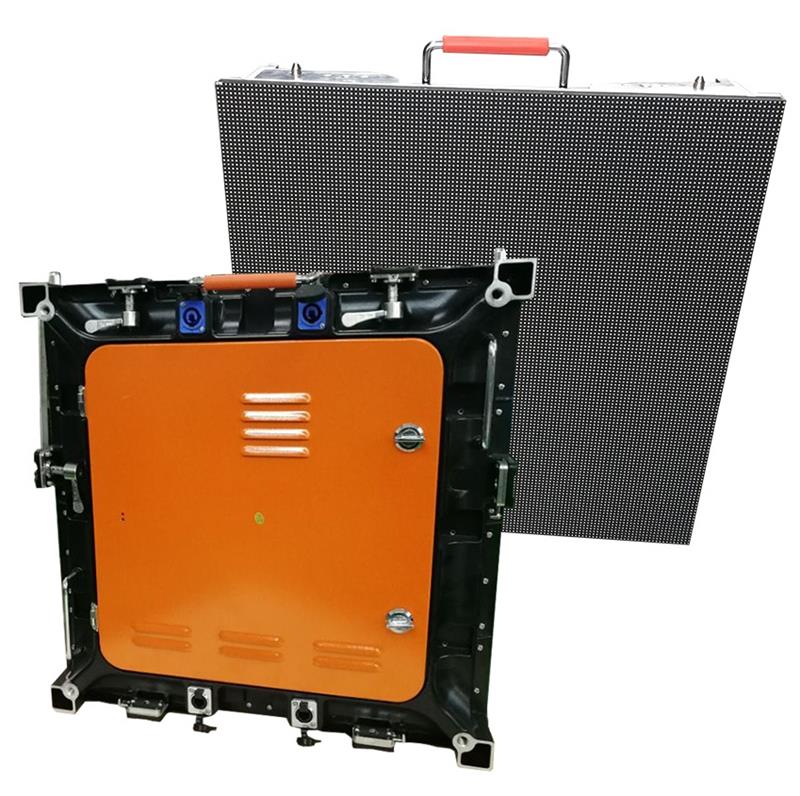

P4 HD Outdoor IP65 Die-casting Aluminum Led Display Cabinet 512*512mm

Outdoor P4 LED display is very high definition ,only second to P3.91 .

  • P4
  • 852 8591 090

P4mm outdoor led display is cheaper solution for outdoor HD LED displays compared to P3.91 . It is popular for rental use , Brightness is over 5,000 Nits, can show good image even there is strong sunlight. It can be used for both outdoor and indoor events , very wide applications !


1. 6,2500 pixles per square meter , definition is very high .

2. Die-cast aluminum cabinet 512*512mm , only about 8.5 KG per panel ,very light .

3. Nationstar SMD1921 Led , the best SMD brand in China, highly quality

4. High refresh rate ,over 3840 hz/s ,perfect for camera shooting

5. IP65 standard , no problem at all for outdoor events

10. Packed into flight cases , easy to go anywhere

11. Can be hung on truss or stacked on floor .

Aluminum backdoor , can dissipate heat very well . More durable to be used outdoors .

P4 outdoor led display


P4 Outdoor Waterproof Led Display

Pixel pitch

4 mm

Pixel density

62,500 dots /sq.m

Module size(W*H)

256 mm(Width)*128 mm(height)

Module pixels(W*H)

64 dots *32 dots

Pixel configuration

1Red 1Green 1Blue

Drive mode

constant current driving ; 1/8   scan

LED lamp type

Waterproof SMD1921

Cabinet size(W*H*D)

512mm * 512mm * 80mm

Cabinet resolution

128 dots * 128 dots

Net weight

8.5 Kg / cabinet

Color scale

65,536 degree

View angle(H/V)

140/120 degree

Brightness (White balance)

over 5,000cd/sq.m.

Power consumption

Max:300W / panel , Average: 100W / panel

Inputting Voltage

90-264 VAC;   47---63HZ

Operating temperature


Operating humidity


Life time



5,000 hours

Whole Display Flatness

≤0.2mm Juncture

Frame frequency

25-60 Hz/s

Refresh rate

≥3,840Hz /s

Control distance


LED control system

LINSN /   Nova-star / Colorlight

Operating system

Windows 2000 / Windows Xp /   Windows 7 / windows 8 /8.1 / windows 10

Protection grade


Maintenance way

Rear Access

Widely used for outdoor and indoor rental stage, musical concert, church , exhibition show , banquet, wedding, conference room, hotel , school, shopping mall , multimedia presentation, TV station , studio , public advertising etc.
