P4 Cheap Price Front Service Led Display for Wall Install with Simple Iron Cabinet ( Customized Size )

  • P4
  • ENBON
  • 852 8591 090
Quantity:

P4 indoor LED video display is now the most popular pixel pitch for fixed installation.  High definition and high refresh output, the price is very low. Using simple style iron cabinet, very thin thickness only 100mm, screen weight less than 30 KG / m2. Magnetic modules design , fully front maintenance , it can save much installation space because you don't need to leave any rear space for rear maintenance. it is very cost effective for wall installation project !



Features

1. High resolution : 62,500 pixels / square meter , can show texts , videos very clearly

2. Simple style iron cabinet without backdoor , fans, connectors , good heat dissipation , weight about 30 KG/M2.

3. Regular cabinet sizes 768*768mm / 1024*1024mm ( size can be customized )

4. SMD2121 Black Body Led with black masks , high contrast ratio , vivid display

5. Higher refresh rate: over 1,920Hz/s, no scan lines and dots when photographed

6. Excellent ventilated fan design for heat dissipation,improving the stability and lifespan

7. SMD 3 in 1 technology, ensure the super wide view angle and better evenness surface

8. Packed into plywood cases , save package and transportation cost

9. Easy to fix mounting , friendly maintenance by small front service tool



Available Pixel Pitch


P3mm , P4mm , P5mm , P6mm , P7.62mm , P10mm

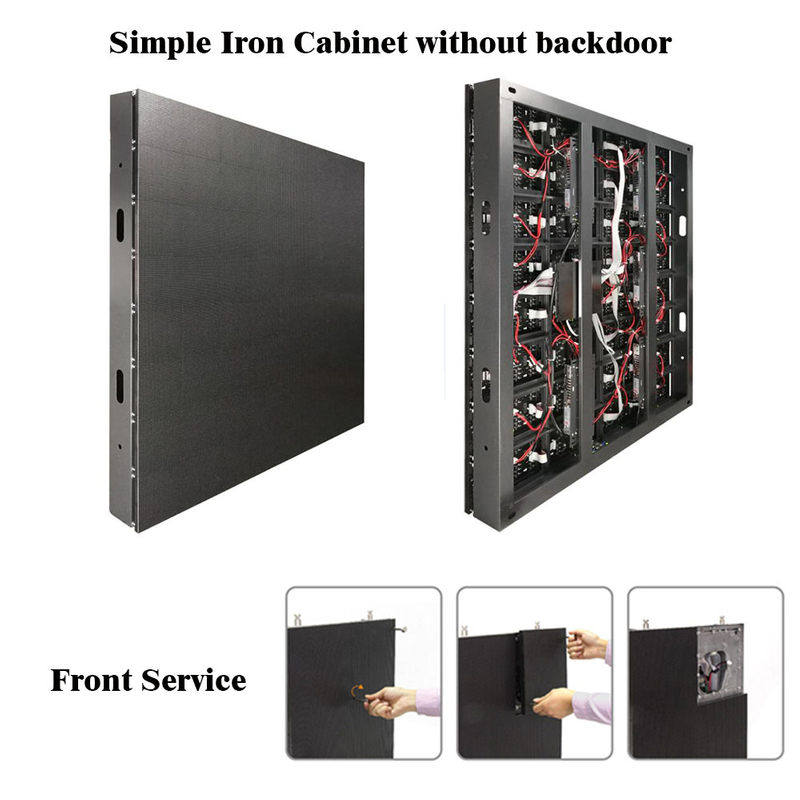

P4 Iron cabinet






 Simple Style Iron Cabinet


 Thickness 100mm












Magnetic Module Led Display










Magnetic Foot Led Module ,


Mounting on Iron tightly














Front Service Led Display










 No Backdoor, Fans , Connectors


 Good Heat Dissipation







Front Service Tool







Small Front Maintain Tool



















How to install LED screen on wall ?



前维护固定安装


Model

P4 HD Led Video Screen for Fixed Installation

Pixel pitch

4mm

Pixel density

62,500 dots /sq.m

Module size(W*H)

256 mm(width)*128 mm(height)

Module pixels(W*H)

64 dots *32 dots

Pixel configuration

1Red 1Green 1Blue

Drive mode

constant current driving 1/16 scan

LED lamp type

SMD2121

Cabinet size(W*H*D)

768 mm * 768 mm / 1024*1024mm  ( size can be customized )

Color scale

65,536 degree

View angle(H/V)

140/120 degree

Brightness (White balance)

about 1100cd / sq.m.

Power consumption(one cabinet)

Max: 800 W / sq.m.     Average: 250W / sq.m.

Operating Voltage

AC100V±10% or 220V ±10%;   50---60HZ

Net weight

30Kg / sq.m (Iron cabinet)

Operating temperature

-30°C----+60°C

Operating humidity

10%—95%RH

Life time

≥100,000hours

MTBF

5,000 hours

Whole Display Flatness

≤0.5mm Juncture

Frame frequency

25-60 Hz/s

Refresh rate

≥1.920Hz /s

Control distance

within 100m by CAT5 cable or unlimited by wireless control

Power

110V/220V±15%  47--63Hz

LED control system

LINSN /   Nova-star / Colorlight

Operating system

Windows 2000 / Windows Xp /   Windows 7 / windows 8 /8.1 / windows 10

Protection grade

IP30

Maintenance way

Front Access


Widely used for stage, musical concert, church , exhibition show , banquet, wedding, conference room, hotel , school, shopping mall , multimedia presentation, TV station , studio , public advertising etc.


P4 indoor_led_front access


front access iron cabinet screen


P4 front access Led


P4 Indoor Led Display
