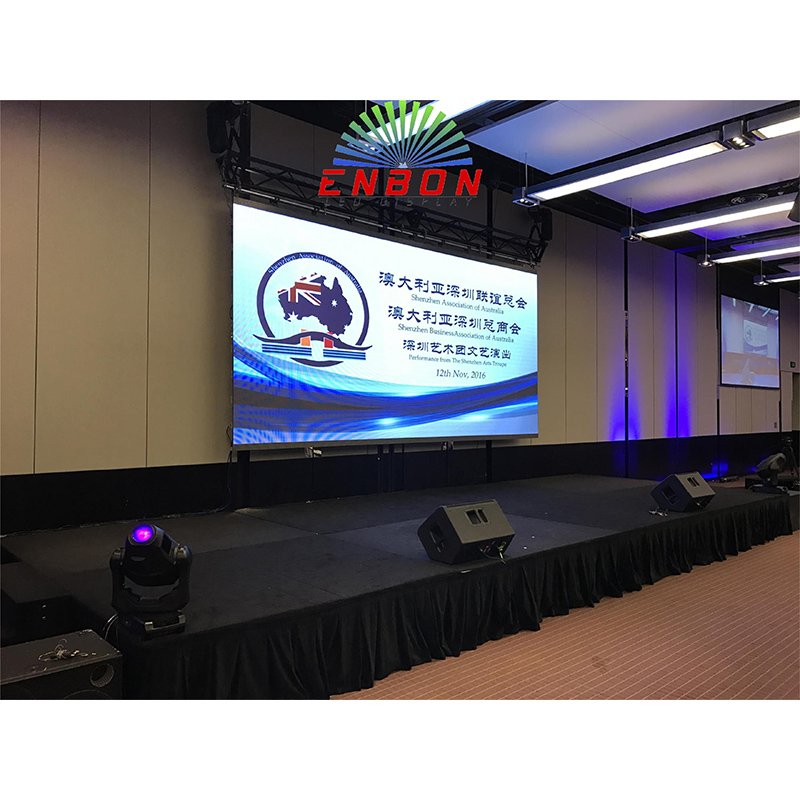

P4.81 Indoor HD Visual Stage Backdrop 500*500mm Led Wall

  • P4.81

  • ENBON

  • 852 8591 090

Availability:

This is ENBON Best-selling LED Screen. It is die-casting aluminum cabinet ,ultra-thin and super-light. Only 7.5 KG for 500*500mm panel.  Packed by road cases , very portable , ready to go anywhere at any time for all your events indoors.


Features


1. Ultra thin Led Panel 500mmW*500mmH*80mmD , light weight 7.5 KG per panel

2. Easy to calculate Led video wall size , display area exactly 3.5*2m, 4*2.5m, 6*3.5m etc

3. SMD2121 Black Body Led with black masks , high contrast ratio , vivid display

4. High refresh, High gray scale, Ghost-canceling, Gorgeous picture showing

5. Die-cast aluminum cabinet , high precision , good flatness, seamless splicing

6. Special frame structure make excellent heat dissipation, quiet operation without fans

7. Large viewing angle and smooth displaying , excellent visual effect from every angle

8. Super durable fast locks design , easy to assemble and dismantling at short time

9. Seetronic brand power and signal connectors, best connector in China Led market

10. Packed into flight cases ( max 12 panels in 1) , easy to transport , protect panels well

11. Can be portable use or fixed mounting, easily suspended on truss with hanging bars


HD 500x500 ( 3 views)

500X500MM





Friendly Maintenance


Handle design , easy for rear maintenance







Led panel


Fast assembly






4 Panels for 1 Square meter


Seetronic brand connectors


















Enbon fast locks


Model

P4.81 Indoor Full Color LED Video Wall

Pixel pitch

4.81mm

Pixel density

43,264 dots / sq.m

Module size(W*H)

250 mm (width) * 250 mm (height)

Module pixels(W*H)

52 dots * 52 dots

Pixel configuration

1Red 1Green 1Blue

Drive mode

constant current driving 1/13 scan

LED lamp type

SMD2121

Cabinet size(W*H*D)

500mm (width) * 500mm (height) * 80mm (depth)

Net weight

7.5 Kg / cabinet

Cabinet resolution

104 dots (width ) * 104 dots (height )

Color scale

65,536 degree

View angle(H/V)

140/120 degree

Brightness (White balance)

about 1000 cd / sq.m

Power consumption

Max:150W / cabinet , Average: 75 W / cabinet

Operating Voltage

90-264VAC    47--63Hz

Operating temperature

-30°C----+60°C

Operating humidity

10%—95%RH

Life time

≥100,000hours

MTBF

5,000 hours

Whole Display Flatness

≤0.2mm Juncture

Frame frequency

25-60 Hz/s

Refresh rate

≥3,840Hz /s

Control distance

100m

LED control system

LINSN /   Nova-star / Colorlight

Operating system

Windows 2000 / Windows Xp / Windows 7 / windows 8   /8.1 / windows 10

Protection grade

IP30

Maintenance way

Rear Access / Front Access


Widely used for rental stage, musical concert, church , exhibition show , banquet, wedding, conference room, hotel , school, shopping mall , multimedia presentation, TV station , studio , public advertising etc.
