P4 512x512mm panel size LED Video wall Indoor for stages conference Music show

P4 mm LED display screen is consist of die casting aluminum cabinet of 512mm*512mm. It's very high precision , tolerance is smaller than 0.2mm.The resolution is 62,500 pixels per square meter , such high resolution screen can better meet HD requirement , show clear image even viewed from short distance.

Features

1. Ultra thin Led Panel 512mmW*512mmH*80mmD , light weight 9 KG per panel

2. SMD2121 Black Body Led with black masks , high contrast ratio , vivid display effect

3. High refresh, High gray scale, Ghost-canceling, Gorgeous picture showing

4. Die-cast aluminum cabinet , high precision , good flatness, seamless splicing

5. Excellent cooling design , noiseless operation , low power consumption

6. Large viewing angle , smooth screen surface , excellent visual effect from every angle

7. Special spring locks design , easy to assemble and dismantling

8. Seetronic brand power and signal connectors, best connector in China Led market

9. Packed into flight cases , easy to transport

10. Can be for portable use or fixed mounting, easily suspended on truss with hanging bars

P2 512X512 INDOOR

P2 512x512mm

512X512mm

Model	P4 Indoor Led Display Panel
Pixel pitch	4 mm
Pixel density	62,500 dots /sq.m
Module size(W*H)	256 mm(Width)*128 mm(height)
Module pixels(W*H)	64 dots *32 dots
Pixel configuration	1Red 1Green 1Blue
Drive mode	constant current driving ; 1/16 scan
LED lamp type	SMD2121
Cabinet size(WHD)	512mm * 512mm * 80mm
Cabinet resolution	128 dots * 128 dots
Net weight	≈ 8 Kg / cabinet
Color scale	65,536 degree
View angle(H/V)	140/120 degree
Brightness (White balance)	≈ 1，100 cd/sq.m.
Power consumption	Max:,200W / panel , Average: 80W / panel
Inputting Voltage	90-264 VAC; 47---63HZ
Operating temperature	-30°C----+60°C
Operating humidity	10%—95%RH
Life time	≥100,000hours
MTBF	5,000 hours
Whole Display Flatness	≤0.2mm Juncture
Frame frequency	25-60 Hz/s
Refresh rate	≥3,700Hz /s
Control distance	100m
LED control system	LINSN / Nova-star / Colorlight
Operating system	Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10
Protection grade	IP30
Maintenance way	Rear / Front Access

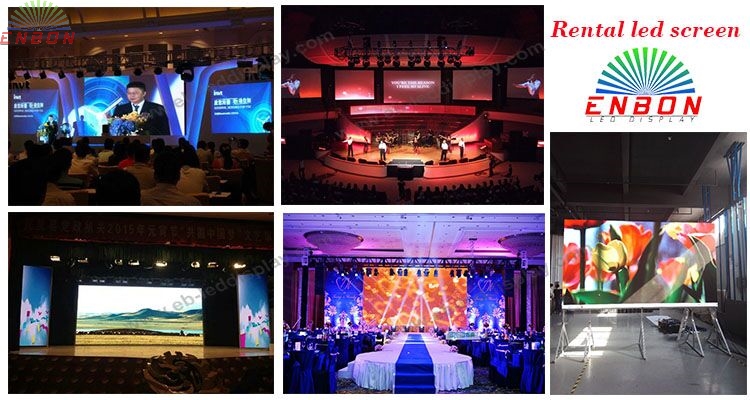

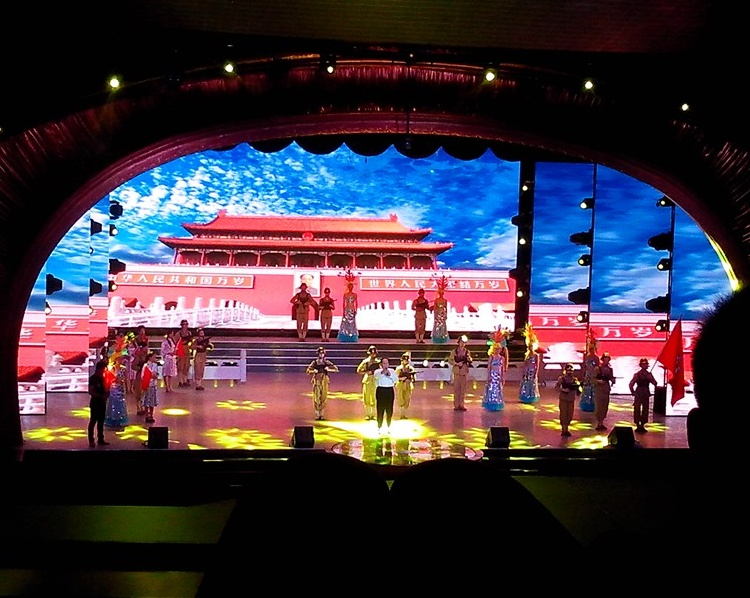

This 512*512mm cabinet is good for rental as well as fixed instalaltion . It's widely used for shopping mall ,stage, musical concert, church , wedding, conference room, hotel , school etc.

indoor rental led wall

car show LED wall
