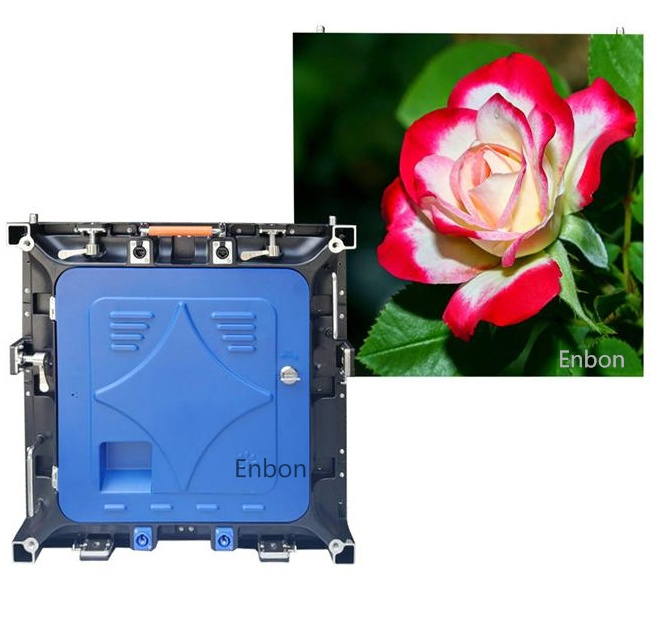

P2.0 Fine Pixel Pitch 512x512mm UHD LED Video Screen with SMD1415 Led

It's the most cost effective small pixel LED display available

  • P2.0
  • 8528591090

P2 mm LED display screen is consist of die casting aluminum cabinet of 512mm*512mm. It's very high precision , tolerance is smaller than 0.2mm.The resolution is 250,000 pixels per square meter , such high resolution screen can better meet HD requirement , show clear image even viewed from short distance.


1. Ultra thin Led Panel 512mmW*512mmH*80mmD , light weight 8 KG per panel

2. SMD1415  Led lamps , high contrast ratio , vivid display effect

3. High refresh, High gray scale, Ghost-canceling, Gorgeous picture showing

4. Die-cast aluminum cabinet , high precision , good flatness, seamless splicing

5. Excellent cooling design , noiseless operation , low power consumption

6. Large viewing angle , smooth screen surface , excellent visual effect from every angle

7. Special spring locks design , easy to assemble and dismantling

8. Seetronic brand power and signal connectors, best connector in China Led market

9. Packed into flight cases , easy to transport

10. Can be for portable use or fixed mounting, easily suspended on truss with hanging bars

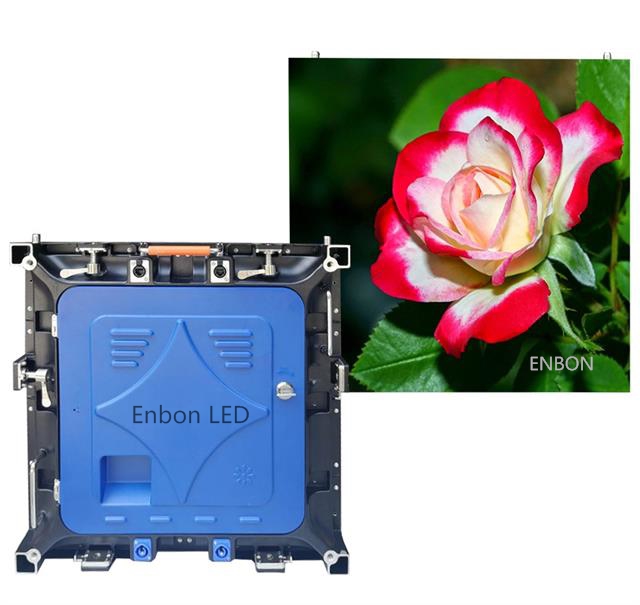

P2.0 LED cabinet


P2.0 UHD Indoor Led Display

Pixel pitch

2 mm

Pixel density

250,000 dots /sq.m

Module size(W*H)

256 mm(Width)*128 mm(height)

Module pixels(W*H)

128 dots *64 dots

Pixel configuration

1Red 1Green 1Blue

Drive mode

constant current driving ; 1/32  scan

LED lamp type


Cabinet size(W*H*D)

512mm * 512mm * 80mm

Cabinet resolution

256 dots * 256 dots

Net weight

≈ 8 Kg / cabinet

Color scale

65,536 degree

View angle(H/V)

140/120 degree

Brightness (White balance)

≈600 cd/sq.m.

Power consumption

Max:,200W / panel , Average: 80W / panel

Inputting Voltage

90-264 VAC;   47---63HZ

Operating temperature


Operating humidity


Life time



5,000 hours

Whole Display Flatness

≤0.2mm Juncture

Frame frequency

25-60 Hz/s

Refresh rate

≥3,000Hz /s

Control distance


LED control system

LINSN /   Nova-star / Colorlight

Operating system

Windows 2000 / Windows Xp /   Windows 7 / windows 8 /8.1 / windows 10

Protection grade


Maintenance way

Rear / Front Access

This 512*512mm cabinet is good for rental as well as fixed instalaltion . It's widely used for shopping mall ,stage, musical concert, church , wedding, conference room, hotel , school etc.

indoor rental led wall

car show LED wall
